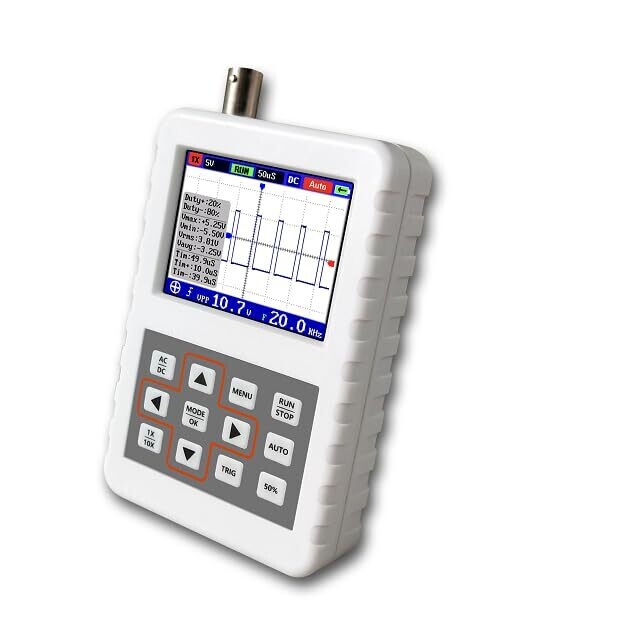

Yuqiaotime FNIRSI PRO Handheld Oscilloscope: 5M Bandwidth, 20Msps

Others
Condition: New

$83.71

A compact, pocket-sized handheld oscilloscope designed for on-the-go testing with a bright color display, one-button AUTO operation, and reliable triggering. It offers built-in memory, fast waveform capture, intuitive controls, and easy file management for field diagnostics.

Stock Status: In Stock
Delivery Status: 1-3 days
Excluding Tax: $0
Compare
Add to wishlist
Category:
Description

Yuqiaotime FNIRSI PRO Handheld Oscilloscope: 5M Bandwidth, 20Msps

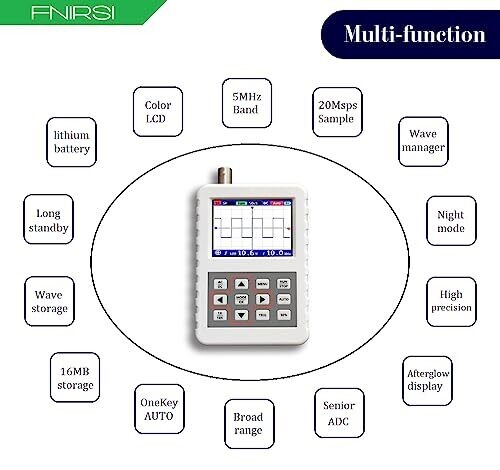

  • Compact handheld oscilloscope designed for on-the-go testing with a marketing-friendly emphasis on portability and ease of use.
  • Generous built-in memory and fast waveform capture to ensure you never miss important signals.
  • Bright color display and intuitive controls deliver clear, immediate visibility of waveforms in any environment.
  • One-button AUTO operation and complete triggering functionality simplify setup for reliable measurements.

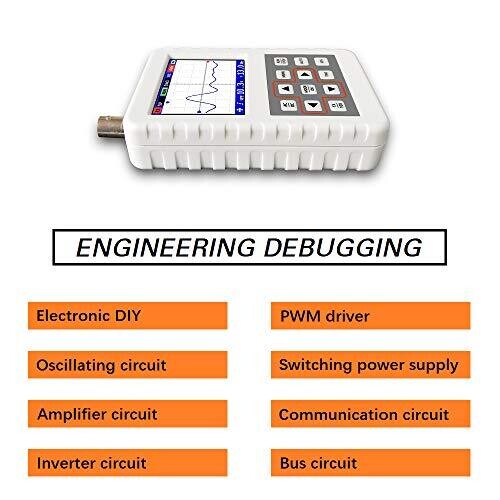

  • Lightweight, pocket-sized design makes it ideal for fieldwork, education, and quick diagnostics.
  • Supports convenient waveform file management with thumbnail browsing and easy viewing options.

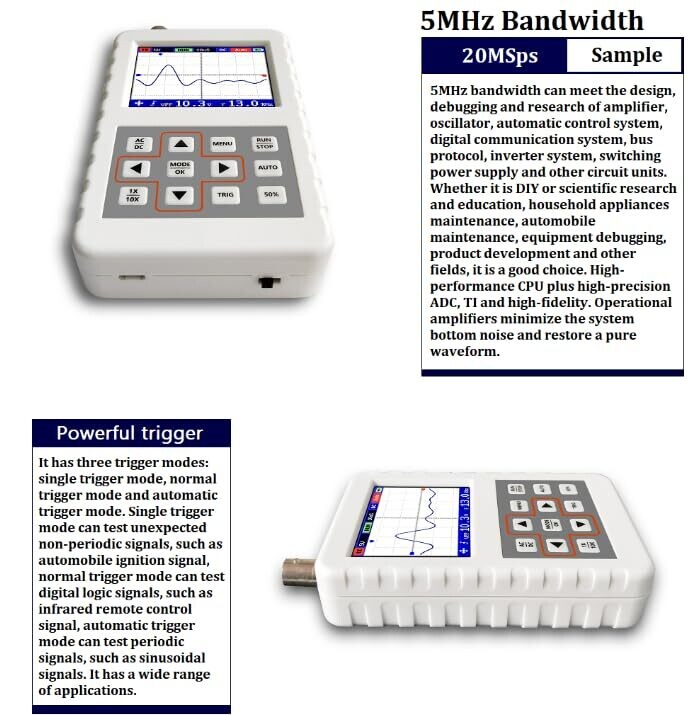

  • Analog bandwidth:
    		•  5 MHz
  • Maximum real-time sampling rate:
    		•  20 MS/s
  • Vertical sensitivity:
    		•  50 mV/div to 200 V/div
  • Horizontal time base range:
    		•  50 S/div to 250 ns/div
  • Maximum input voltage:
    		•  40 V (1X probe), 800 V (10X probe)
  • Storage depth:
    		•  40 KB
  • Input resistance:
    		•  1 MΩ
  • ADC precision:
    		•  8 bits
  • Coupling mode:
    		•  AC/DC
  • Trigger mode:
    		•  Single, Normal, Automatic
  • Trigger edge:
    		•  Ascending/Descending
  • External trigger voltage:
    		•  0–40 V
  • Display:
    		•  2.4 inch, 320 × 240

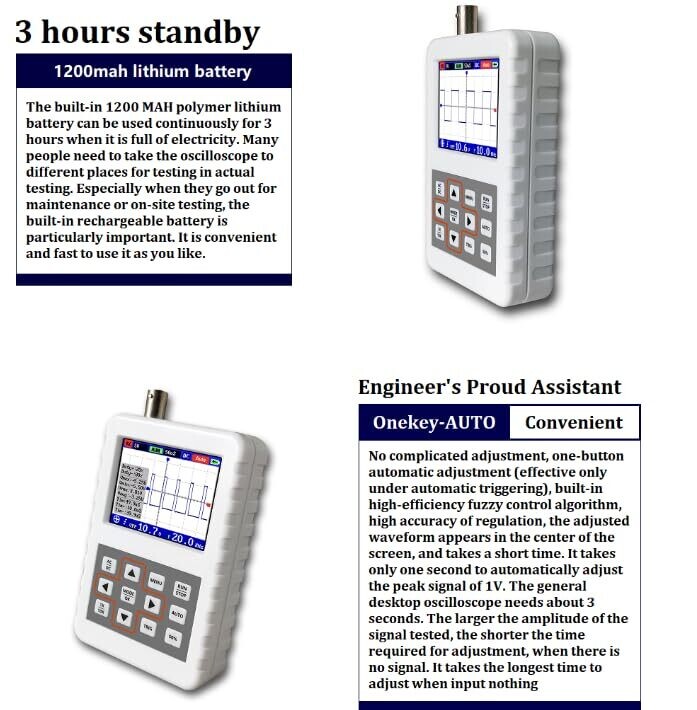

  • Power supply:
    		•  1200 mAh lithium battery
  • Size:
    		•  107 × 70 × 24 mm
  • Weight:
    		•  150 g
  • Built-in storage:
    		•  16 MB; maximum storage of 500 waveform pictures
