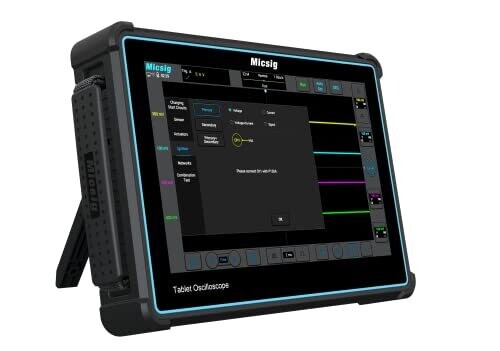

Micsig Automotive Oscilloscope ATO Series ATO2002/1004/2004/3002/3004 – 2/4 Channels, 100–300Mhz

Micsig
Condition: New

$2,560.73

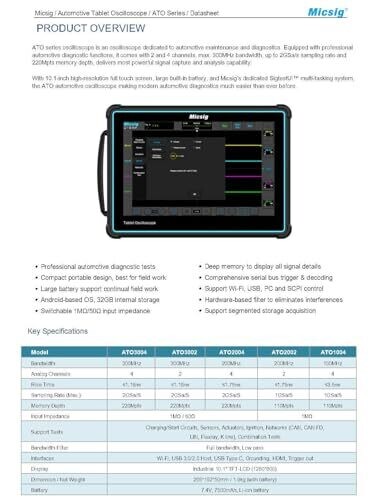

Portable automotive oscilloscope designed for field diagnostics with long battery life. Features Android-based UI, onboard storage, selectable 1 MΩ or 50 Ω input, deep memory, serial bus trigger/decoder, Wi‑Fi/USB/SCPI, and segmented data capture.

Stock Status: In Stock
Delivery Status: 1-3 days
Excluding Tax: $0
Compare
Add to wishlist
Category:
Description

Micsig Automotive Oscilloscope ATO Series ATO2002/1004/2004/3002/3004 – 2/4 Channels, 100–300Mhz

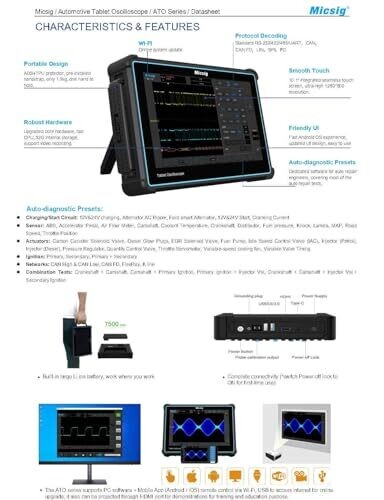

  • Engineered for automotive diagnostics with a portable, field-ready design.
  • Long-lasting battery supports extended field operations.
  • Intuitive Android-based interface with onboard storage for offline use.
  • Flexible input impedance with selectable 1 MΩ or 50 Ω to suit different signal sources.

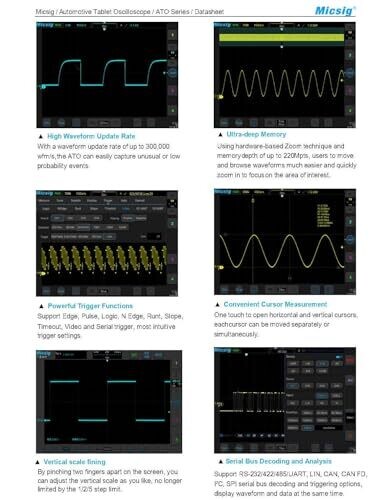

  • Deep memory enables capture and display of detailed signal information.

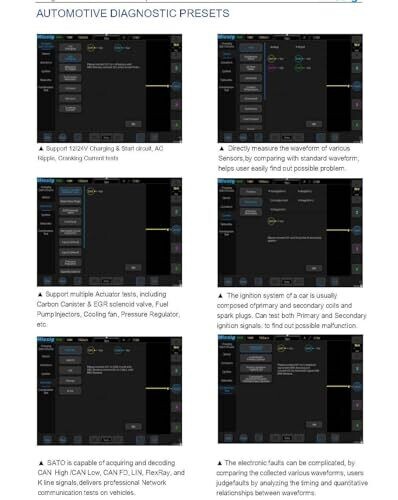

  • Integrated serial bus trigger and decoding for common automotive protocols.
  • Wi‑Fi, USB, PC and SCPI control provide versatile connectivity options.
  • Hardware-based filtering helps minimize interference for clearer signals.
  • Supports segmented storage acquisition for efficient data capture.

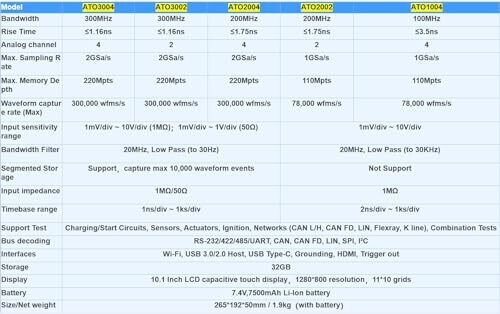

  • Product family:
    		•  Micsig Automotive Oscilloscope ATO Series (ATO2002/1004/2004/3002/3004; 2/4 channels).
  • Bandwidth:
    		•  100/200/300 MHz.
  • Sampling rate:
    		•  2 GSa/s.
  • Memory depth:
    		•  220 Mpts (ATO3002 2CH 300 MHz).
  • Channels:
    		•  2 or 4 channels depending on model.
  • Input impedance:
    		•  Switchable 1 MΩ / 50 Ω.
  • Power:
    		•  Battery-powered for field use.
  • Interface:
    		•  Android-based OS with 32 GB internal storage.
  • Connectivity:
    		•  Wi‑Fi, USB, PC, and SCPI support.
  • Acquisition:
    		•  Segmented memory acquisition supported.
  • Trigger/Decoding:
    		•  Comprehensive serial bus trigger and decoding.
  • Filtering:
    		•  Hardware-based filter to reduce interferences.
