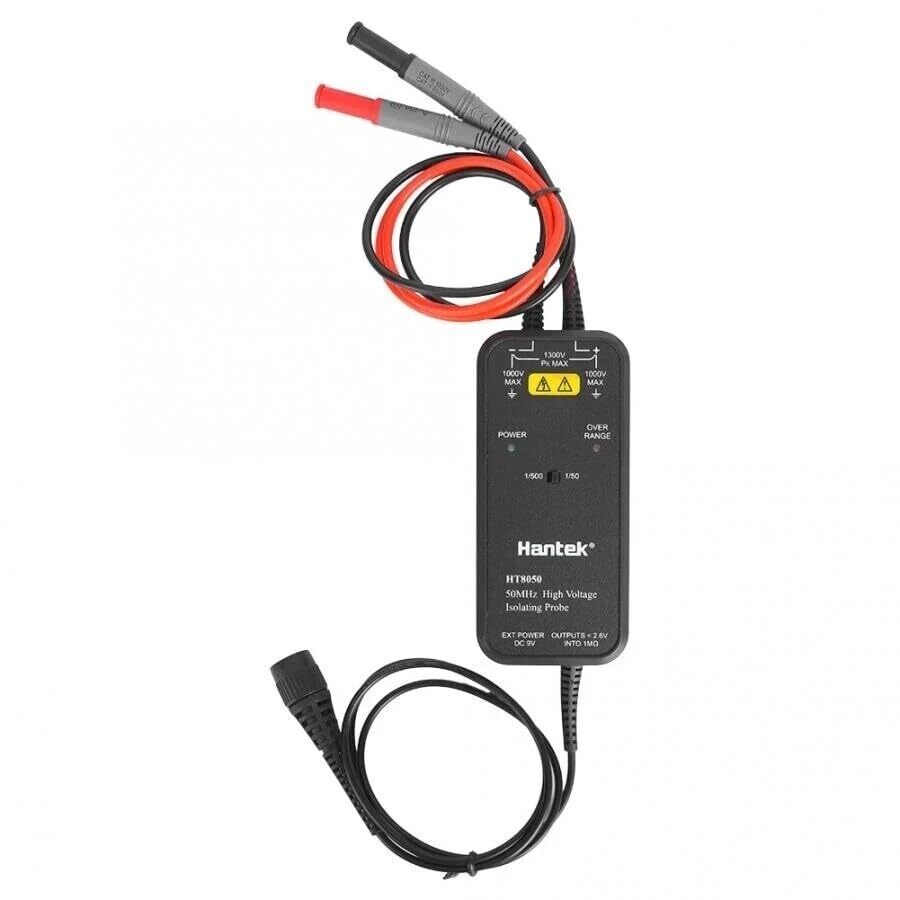

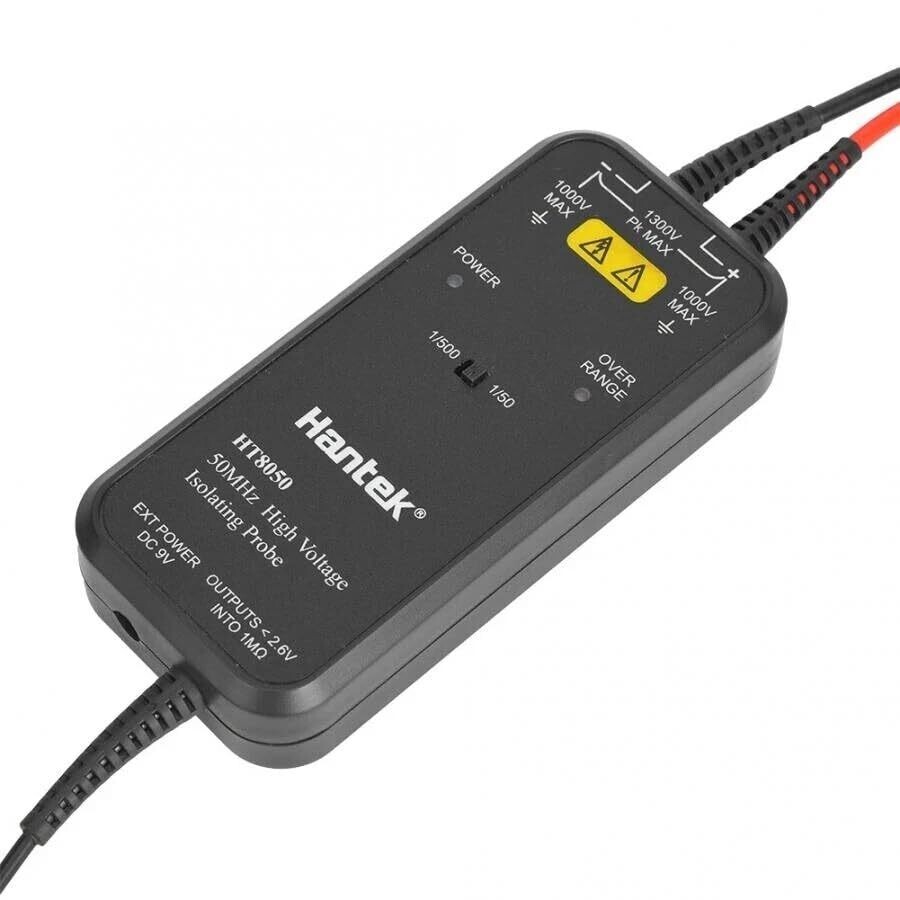

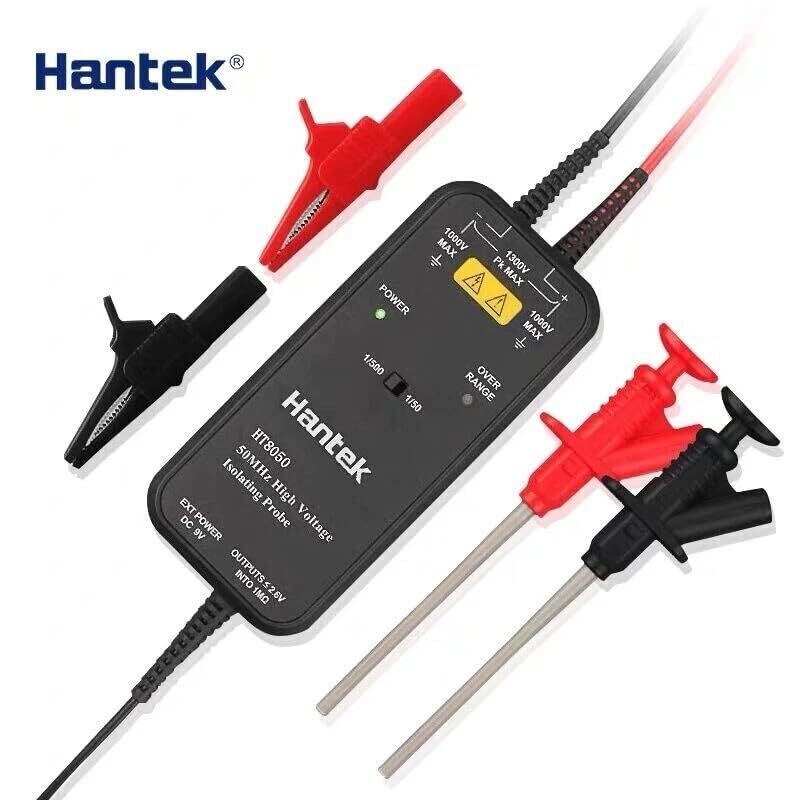

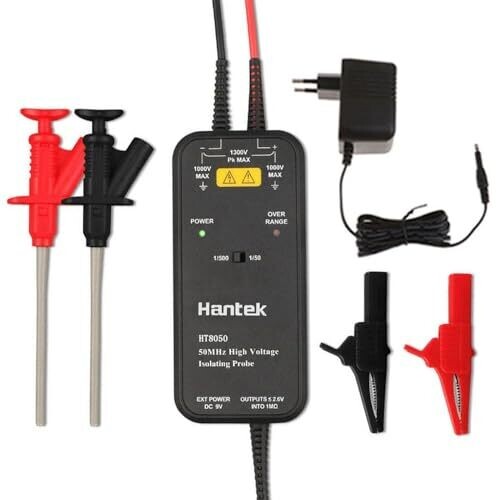

Hantek HV Isolated Differential Probe HT8050 HT8100 – 50-100Mhz Oscilloscope Probe

Hantek
Condition: New

$449

Experience safe, precision high voltage measurement with the HT8000 series differential isolated probes. Two attenuation options offer flexible ranges, with over-range indication for quick safety checks. Compact, sturdy construction delivers stable, accurate performance in challenging environments.

Stock Status: In Stock
Delivery Status: 1-3 days
Excluding Tax: $0
Compare
Add to wishlist
Category:
Description

Hantek HV Isolated Differential Probe HT8050 HT8100 – 50-100Mhz Oscilloscope Probe

  • Experience safe, precision high voltage measurement with the HT8000 series differential isolated probes.
  • Two attenuation options enable flexible range configurations for demanding HV measurement tasks.
  • Over-range indication helps you quickly assess whether the probe is within safe measurement limits.
  • Compact, sturdy construction delivers stable, reliable, and accurate performance in challenging environments.
  • Designed for high voltage isolation measurements with focus on safety, stability, and ease of use.
  • Model Numbers:
    		•  HT8050, HT8100
  • Bandwidth (-3 dB):
    		•  HT8050 = 50 MHz; HT8100 = 100 MHz
  • Rise Time:
    		•  HT8050 ≤ 7 ns; HT8100 ≤ 3.5 ns
  • Accuracy:
    		•  ±2%
  • Attenuation Ratios:
    		•  1/50, 1/500
  • Input Impedance (Single-ended to ground):
    		•  4 MΩ ±1%; Between input ends
  • Input Capacitance (Single-ended to ground):
    		•  ≤ 8 pF; Between two input ends
  • Maximum Difference Measurement Voltage:
    		•  1/50
  • Maximum Common Mode Input Voltage:
    		•  1000 V rms, CAT II; 600 V rms, CAT III
  • Noise:
    		•  1/50 ≤ 2 mV rms; 1/500 ≤ 1 mV rms
  • Linearity:
    		•  ±1%
  • Delay Time:
    		•  ≤ 10 ns
  • CMRR (DC):
    		•  ≥ 80 dB; CMRR at 100 kHz
  • Over Range Warning Voltage Threshold:
    		•  1/50 ≥ 130 V; 1/500 ≥ 1300 V (DC+peak AC)
  • Power Adapter Output:
    		•  DC 9 V, 1000 mA
  • Power Adapter Input:
    		•  AC 100-240 V, 50-60 Hz
  • Length of Input Cable:
    		•  HT8050 ≈ 60 cm; HT8100 ≈ 25 cm
  • Length of Output Cable:
    		•  ≈ 90 cm
  • Probe Body Dimensions:
    		•  120 × 55 × 24 mm
  • Weight (probe only):
    		•  ≈ 156 g
