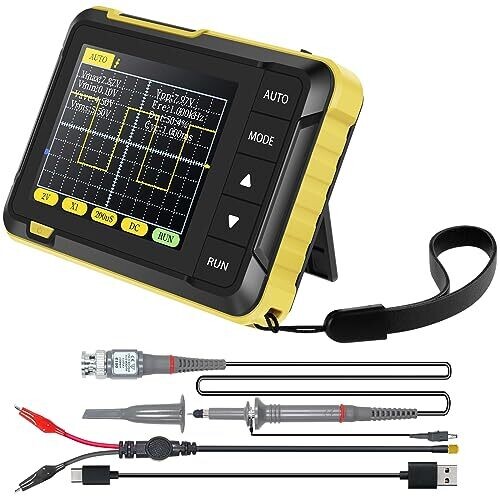

DSO152 Handheld Oscilloscope Kit - Pocket-Ready 2.8In, 2.5Ms/S, 200Khz

Others
Condition: New

$39.99

Experience portable precision with the Handheld Oscilloscope Kit for on-the-go diagnostics. Compact, 2.8-inch display, 1000mAh battery with USB-C charging, and real-time measurements with easy triggering. Includes a high-voltage probe system for field testing.

Stock Status: In Stock
Delivery Status: 1-3 days
Excluding Tax: $0
Compare
Add to wishlist
Category:
Description

DSO152 Handheld Oscilloscope Kit - Pocket-Ready 2.8In, 2.5Ms/S, 200Khz

  • Experience portable precision with the Handheld Oscilloscope Kit, designed for on-the-go diagnostics and field work.
  • Compact, lightweight form factor fits in your pocket or tool bag, making it ideal for quick measurements anywhere.
  • 2.8-inch display provides a clear waveform view, enabling fast assessment without a full bench setup.

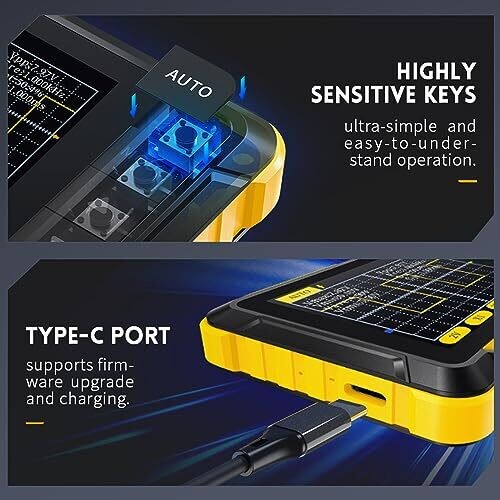

  • Built-in 1000mAh battery for hours of operation, with USB-C charging for convenient recharging and simultaneous data transfer.
  • Real-time measurements become effortless with automatic waveform capture and intuitive controls for single, normal, and auto triggering.
  • Includes a high-voltage capable probe system and simple calibration options for accurate field testing.
  • Ready to use out of the box for routine waveform observations, timing analysis, and troubleshooting across electronics projects.

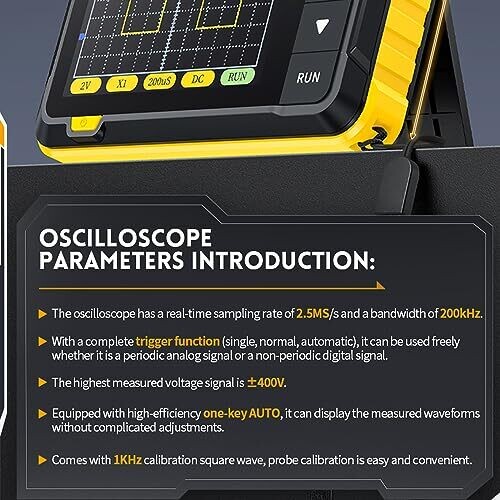

  • Sampling rate:
    		•  2.5 MS/s
  • Bandwidth:
    		•  200 kHz
  • Display:
    		•  2.8 inches, 320×240 resolution
  • Vertical sensitivity:
    		•  10 mV/Div to 20 V/Div
  • Time base range:
    		•  10 µs/Div to 50 s/Div
  • Coupling:
    		•  AC/DC
  • USB charging:
    		•  5V/1A via USB-C
  • Lithium battery capacity:
    		•  1000 mAh
  • Voltage range:
    		•  X1 ±40 V (Vpp 80 V); X10 ±400 V (Vpp 800 V)
  • Trigger modes:
    		•  auto, normal, single
  • Calibration:
    		•  1 kHz square wave, 50% duty cycle
  • Display type:

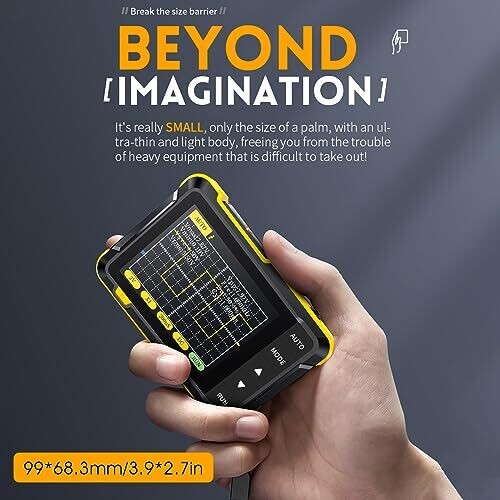

    		•  handheld, about 99×68.3×19.5 mm dimensions
  • Color:
    		•  black
