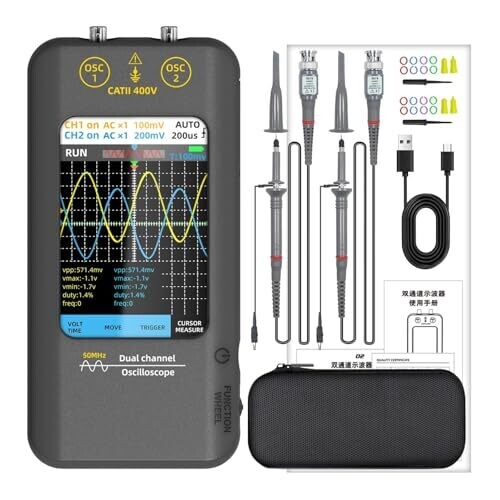

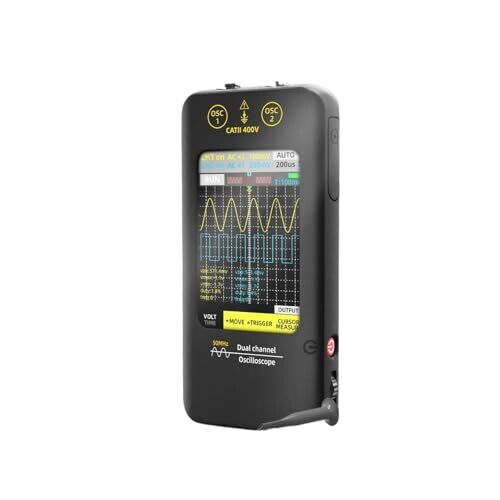

| Advanced Dual Channel Oscilloscope: |
dual channels, 50 MHz analog bandwidth, real-time sampling up to 250 MS/s, storage depth up to 128 kB, input impedance 1 MΩ, bandwidth limit 20 MHz, trigger modes AUTO/Normal/Single, trigger types rising edge and falling edge, waveform display modes XY/YT/Scroll, coupling AC/DC, maximum measurable voltage ±400 V, probes 1x/10x, time base range 10 ns/div to 20 s/div, vertical sensitivity 10 mV/div to 20 V/div, measured data include period, frequency, peak-to-peak, max, min, average, effective value, amplitude, duty cycle, pulse width, with FFT and basic math operations. |

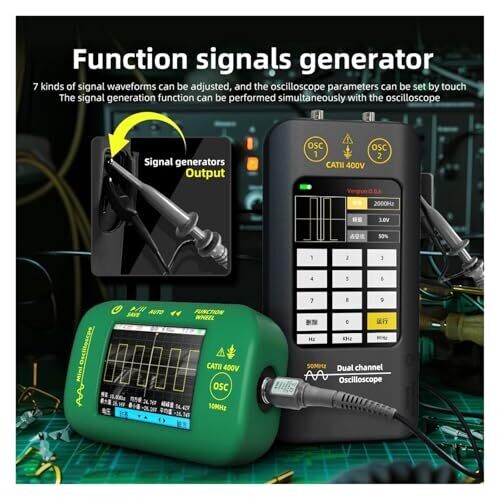

| High-Performance Signal Generator: |
single-channel output, frequency range up to 2 MHz for most waveforms (sine up to 10 MHz, other waveforms up to 5 MHz), amplitude 0.1 V to 3.0 V, duty cycle 0–99%, supports sine, square, sawtooth, half-wave, full-wave, positive/negative step, DC, exponential rise/fall, multi-audio, and sync pulse. |

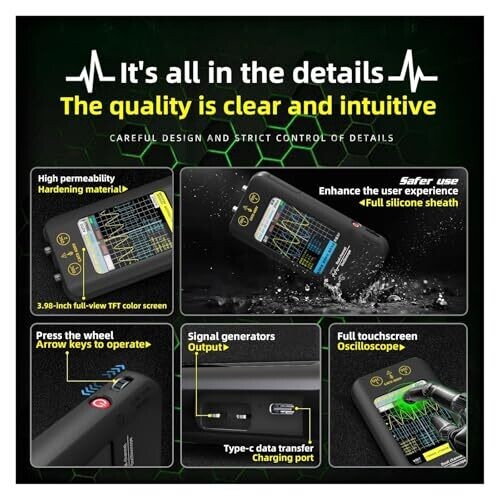

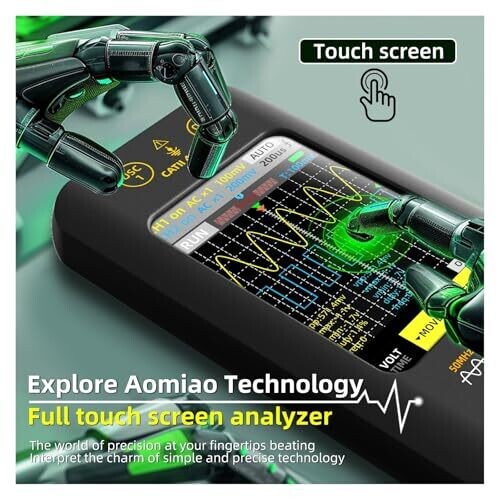

| User-Friendly Touch Display: |
3.98-inch touch screen with high-resolution graphics for clear data interpretation. |
| Robust Measurement Features: |
includes comprehensive measurements and real-time sampling for accurate diagnostics. |
| Portable and Long-lasting Design: |
weighs 268 g with a 4000 mAh battery, enabling extended field use and portability. |
| Basic Parameters: |
screen 3.98 inches, 480x272 pixels; power via USB-C; language options include English and Chinese; device dimensions approximately 170 x 81 x 24 mm; product weight about 268 g. |
| |
